Revolutionizing Construction with Concrete Canvas: A Case Study

/in /by

Channel Lining in Pen Mill, Yeovil

[bafg id=”44480″]

In August 2021, B Keogh Construction undertook a project to line a surface water interception channel on the Wessex Route for Network Rail in Yeovil, Somerset. They used the innovative Concrete Canvas® (CC8™) GCCM, a Type II GCCM that is abrasion, wear, and loading-resistant, and BBA certified with a durability of over 120 years in erosion control applications.

Creating a Scour-resistant Channel

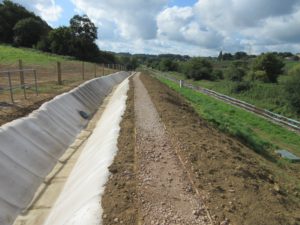

Pen Mill Yeovil Channel Lining Project

Due to localized flooding of the railway line during heavy rainfall and small landslips along the adjacent cutting, the decision was made to reprofile the cutting and create a channel to intercept surface water from nearby farmland. The channel needed to be resistant to scour, making CC8™ an ideal choice for the project.

Installation Process

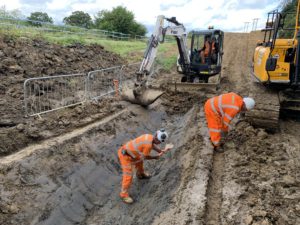

Pen Mill Channel Lining Installation

B Keogh Construction cut a trapezoid open channel using a V-ditch bucket and excavator before filling any large voids to create a uniform and smooth substrate ready for the installation of CC8™. The material was delivered in Bulk Rolls and suspended in the air from a spreader beam for ease of installation. Groundworkers then installed it across the channel in a transverse lay-up, achieving installation rates in excess of 200m2 a day.

Ensuring Longevity and Stability

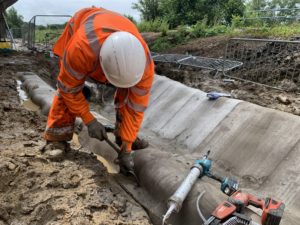

Pen Mill Yeovil Securing CC

Once the CC8™ had been placed across the open channel, it was pegged to the ground inside of 150mm deep anchor trenches to prevent wind and water from undermining the material. Adjacent layers of CC8™ were overlapped and jointed with screws and a continuous bead of approved sealant, minimizing permeability and reducing the escape of water into the ground. All CC8™ installed during the day was fully hydrated at the end of every shift, and the anchor trenches were then back-filled to prevent any wind and water ingress under the material.

Future-proofing the Rail Network

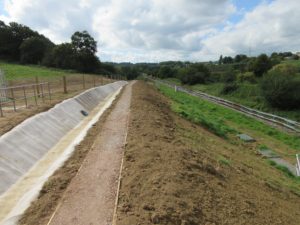

Pen Mill Yeovil Completed Channel Lining Project

By using CC8™, the contracting team saved time on-site, reduced the logistical footprint of the project, and effectively future-proofed the local rail network against adverse weather events. Concrete Canvas® is revolutionizing the construction industry with its innovative, sustainable, and cost-effective solutions for erosion control, containment, and more.

You can download the full case study here.

Contact Concrete Canvas

TechFab India & Will Crawford

Concrete Canvas & TechFab India Enter New Partnership for Indian Market

/in , , /by

Concrete Canvas Ltd (CC Ltd) and TechFab India (TFI) have signed an exclusive partnership contract for the sales, marketing and distribution rights of CC’s patented product range of GCCMs* across all market sectors of India.

The agreement brings together two exciting and dynamic companies who have both demonstrated strong growth over the last 15+ years.

TechFab India was founded in 2003 by the Managing Director, Anant Kanoi and has grown into a business that manufactures and supplies a broad range of geosynthetic products across India and multiple export markets. TechFab India are renowned for providing world class geosynthetic products with a focus on quality and customer service.

CC Ltd was founded in 2005 by Directors Peter Brewin & William Crawford, to commercialise their Concrete Canvas® (CC) material technology. CC is recognised as the first in a new class of geosynthetic products and is used across a wide range of markets for erosion control, weed suppression and containment applications. CC is sold into more than 80 countries globally.

Both companies have a strong Welsh connection, with Concrete Canvas’ headquarters, R&D and manufacturing facilities based in Pontyclun, South Wales. Whilst the MD of TFI, Anant Kanoi, studied a Master of Business Administration (MBA) at the University of Wales, Cardiff.

The new partnership was celebrated at a St David’s day reception held by the Welsh Government at the Grand Hyatt Mumbai Hotel, this week.

“We are delighted to be working with TechFab India, a true leader in the Indian geosynthetics market. We are particularly excited to be entering into this partnership as we launch a new product range, CCX™, developed specifically for canal lining into one of the world’s largest agricultural markets. This agreement marks the start of a great partnership for our businesses and a strong strategic alliance for the Indian market”

Will Crawford – Director, Concrete Canvas Ltd.

“We are thrilled to be working with Concrete Canvas Ltd, the inventors of GCCM technology and a company which continues to innovate and invest heavily in Research & Development. This agreement is a natural partnership between TechFab India, with its national coverage of the Indian market and CC’s innovative geosynthetic technology. We look forward to growing our businesses together over the long-term.”

Anant Kanoi – Managing Director, TechFab India.

*Geosynthetic Cementitious Composite Mat
